HwamdaGroup Premium Fleet
HMD308M8-SP6
SP6 Series High-Speed Precision Injection Molding Machine | HwamdaGroup Solutions
Clamping Force
3080 kN
Injection Range (PS)
482 / 541 g (PS)
Injection speed up to 419mm/s with single-cylinder low-inertia tech from HwamdaGroup, ideal for extra thin-walled cable tie filling.
High-response closed-loop proportional servo valve control system ensures rapid shot repeatability.
Dedicated screw with 24.5:1 / 23:1 L/D ratio targets homogeneous melt and prevents flash boundaries variables.
Finite element optimized high-strength platen resists continuous ultra-high pressure toggle mechanics links buffer shocks.

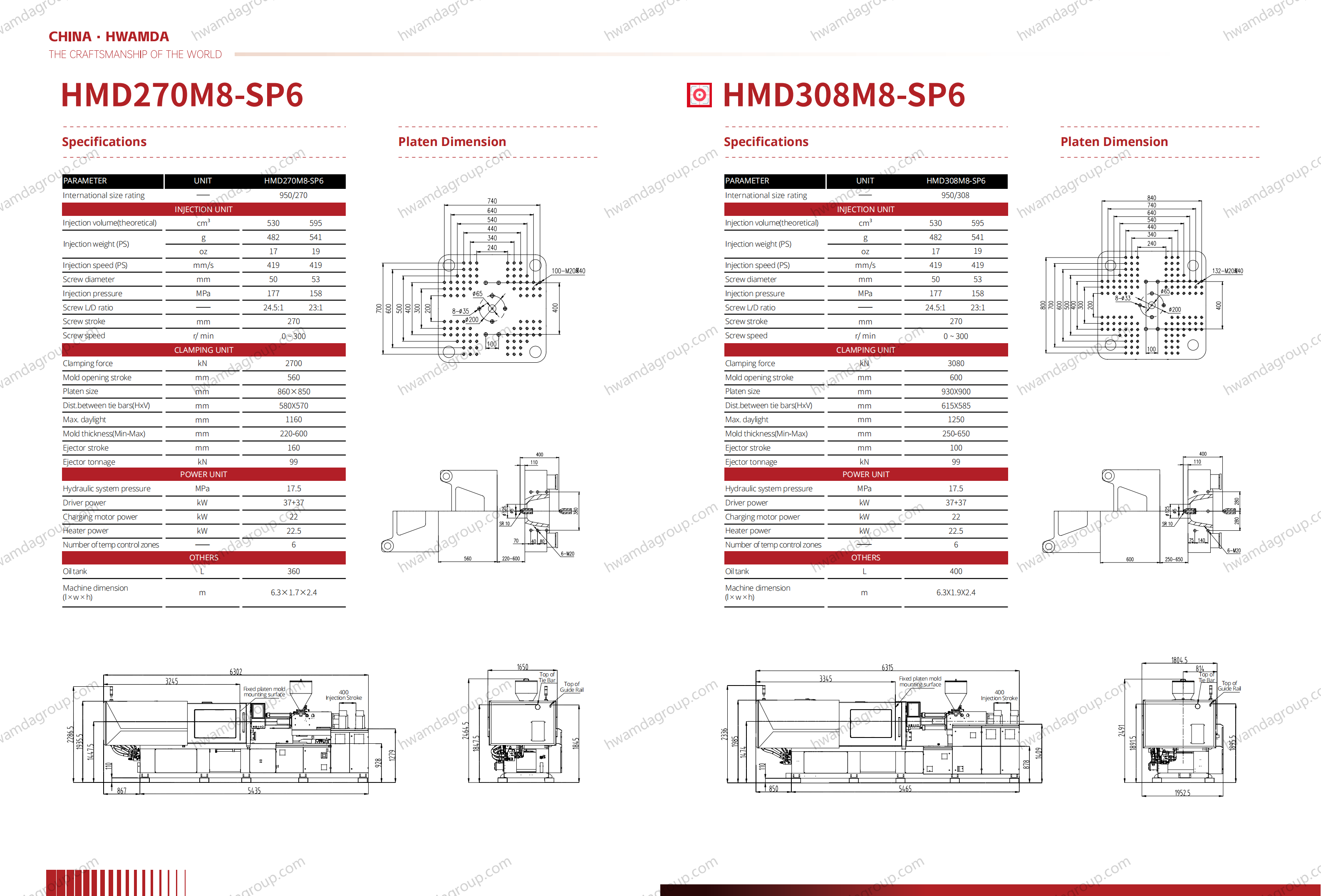

Official Engineering Data-Sheet
Technical Specifications
Click to Zoom Drawing
