HwamdaGroup Premium Fleet
HMD500PET
Specialized High-Speed Injection Molding Machine for PET Preform | HwamdaGroup Solutions
Clamping Force
5000 kN
Injection Range (PS)
3673 g / 4070 g (PET Specialized Heavy Tier)
Heavy-duty plasticizing architecture providing powerful plasticization output tailored for large 3-5 gallon preforms.
Extended ejection stroke with big tonnage cylinders distributed evenly to overcome wrapping force.
Fast close mold hydraulic bypass block compresses dry cycle parameters and shortens open time.
Equipped with forced ejection retreat system to enhance the flexibility of forward/backward sequences.

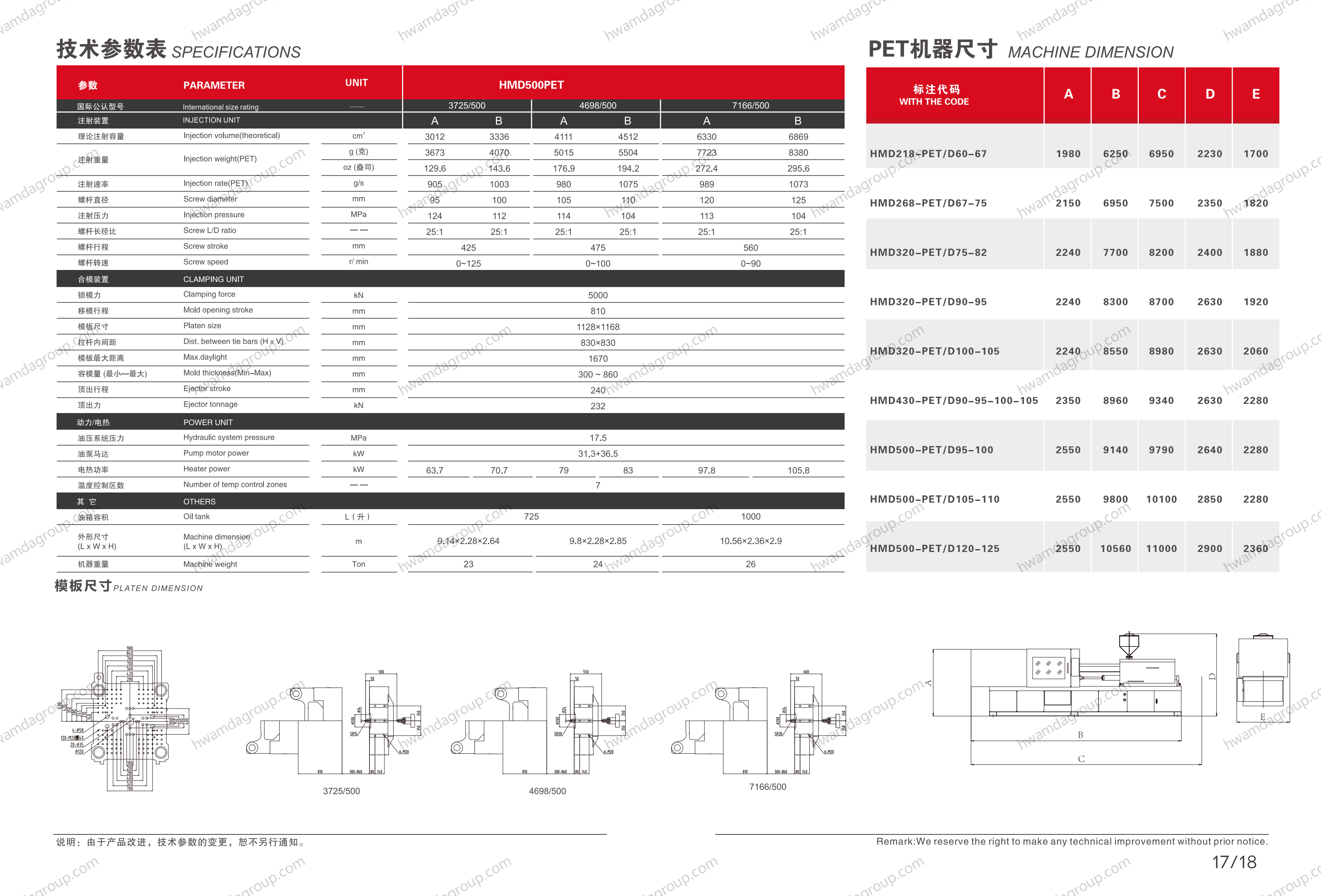

Official Engineering Data-Sheet
Technical Specifications
Click to Zoom Drawing
